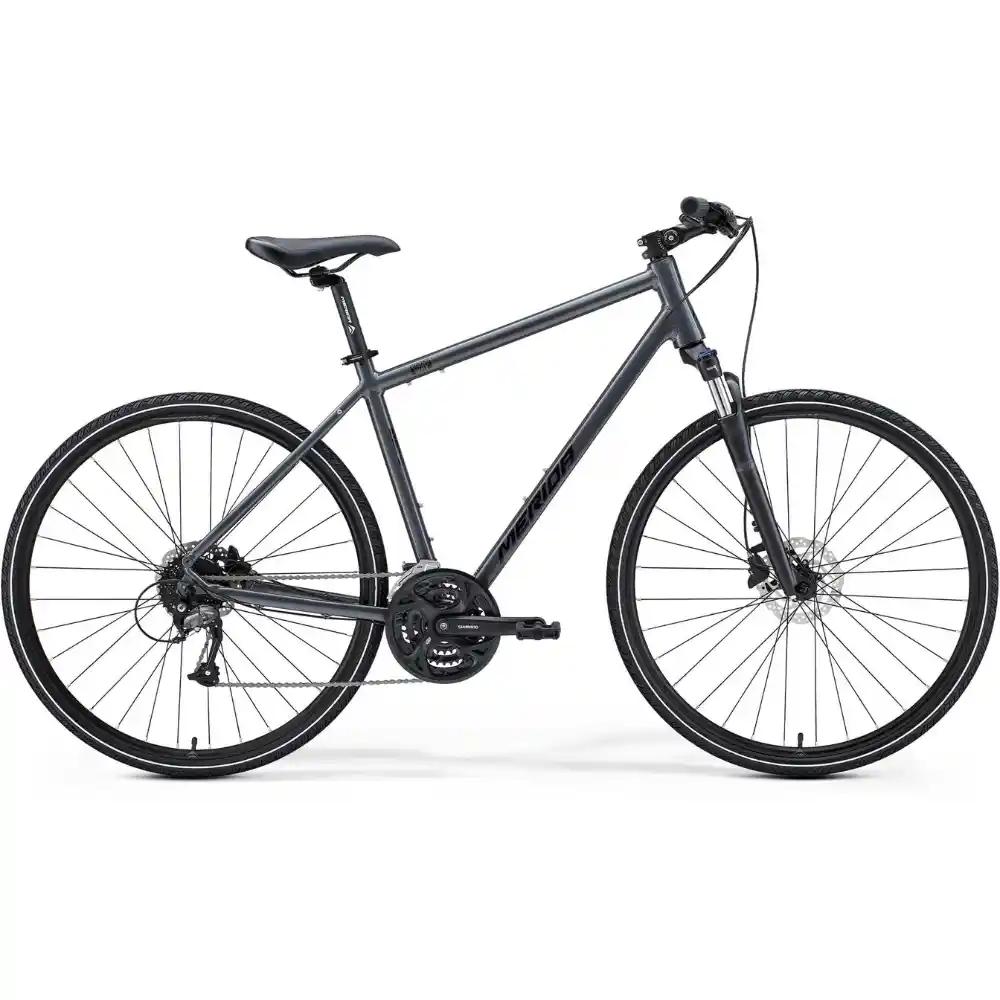

Merida Crossway 40 – M

Hydraulic disc brake equipped trekking/hybrid bike that combines a lightweight aluminium frame featuring a comfort-orientated geometry with key components like a lockable suspension fork for added comfort and riding safety and reliable Shimano gears, allowing you to tackle steeper slopes with ease. Furthermore, the multiple fixing points make it easy to fit fenders, a rear rack and a kickstand, increasing the day to day versatility.

€760.00

SKU: MEHB2424D0002-1

Availability: In Stock

In stock

Free 6 Week Service

Free Assembly

+353(0)719616660

call for sales & advice

free delivery

spend €50 and get free delivery

Free click & collect

buy online, collect in-store

The Merida Crossway 40 offers a hydraulic disc brake featuring trekking/hybrid bike with suspension seat post and fork for added comfort and safety.

Merida Crossway 40 Specifications:

Frame	CROSSWAY TFS III material: aluminium 700x50C max. wheelsize 135x9mm axle standard BSA bottom bracket standard
frame size	Medium
colour	BLACK (SILVER)
fork	SR Suntour NEX HLO Coil 63mm suspension travel lockout 700x50C max. wheelsize
brake front	Power DS100 2 piston hydraulic disc brake
rotor rear	Shimano RT10 160 mm
headset	FSA TH888/NO.10
handlebar	MERIDA CC material: aluminium 660mm width 25mm rise
handlebar stem	MERIDA TK material: aluminium 25.4mm diameter adjustable 100 mm
grip	MERIDA EC
derailleur (r)	Shimano RD-M370
derailleur (f)	Shimano FD-M370
seat post	MERIDA TK 27.2mm diameter 13mm setback 40mm seatpost suspension travel
saddle	MERIDA CROSS SPORT
bottom bracket	FSA TH-7420ST-W, CARTRIDGE BEARING
pedal	VP VPE-891
chain	KMC M99
crank	Shimano FC-M371 48-36-26 teeth 170 mm-XXS/SM, 175 mm-ML/XXL
freewheel	Shimano CS-HG200 11-32 teeth 9 speed
tyre front	MERIDA K1171 700x40C wire
tyre rear	MERIDA K1171 700x40C wire
Manual	View all Merida manuals

Features:

Lightweight aluminium frame with comfort geometry
Lockable suspension fork
Hydraulic disc brakes
Shimano gears
Multiple fixing points for rear rack and fenders
Suspension seat post and adjustable stem

Bike Geometries:

Frame Size	M
Tire Sizes	28″
St Seat Tubes Mm	510
Tt Top Tubes Mm	590
Cs Chain Stays Mm	460
Hta Head Tube Angles Deg	71
Sta Seat Tube Angle Deg	73.5
Bd Bottom Bracket Drops Mm	70
Ht Head Tube Lengths Mm	155
Fl Fork Lengths Mm	468
R Reachs Mm	399
S Stacks Mm	645
Wb Wheel Base Mm	1096
Sh Stand Over Height Mm	782

Technologies:

Shop more Merida products – Here

Shop our range of cycling accessories – Here

If for any reason you are not satisfied with your purchase, please contact us by calling 071 9616660 or contact us, and we will provide you with further instructions on where returns should be shipped.

If you decide that you simply no longer want the item(s) purchased, you can return them to us for an exchange or refund.

All returns must reach us within 21 working days of receiving your order. This refund amount will exclude delivery charges.

Items to be returned or exchanged must be in their original packaging and labelling must still be attached. Your statutory rights are not affected.
