Merida Scultura 4000 Road Bike – S

Merida Scultura 4000 Road Bike – S

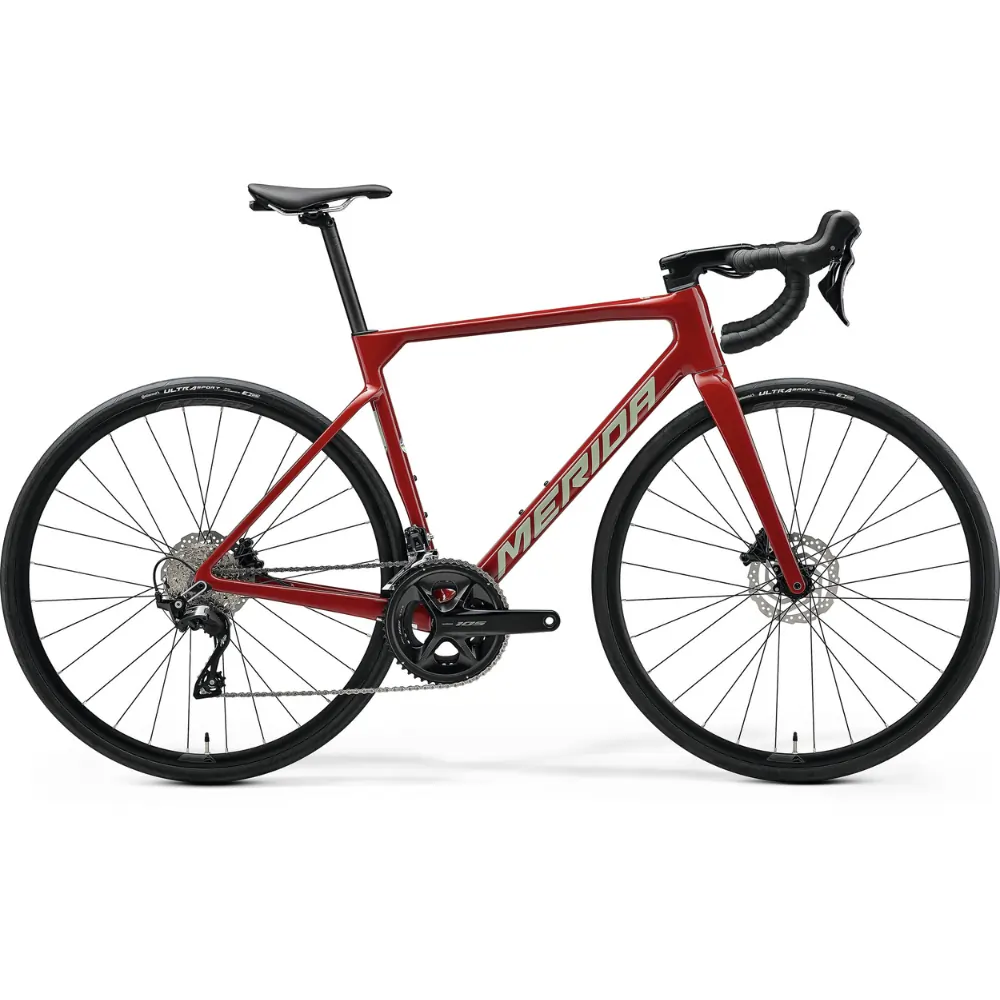

The Merida Scultura 4000 – Lightweight CF3 carbon frameset with full Shimano 105 groupset and hydraulic disc brakes.
  • Pick up in store only

2,700.00

SKU: M-Scul-4000

Availability: In Stock

In stock

Share
Tweet
Share
Merida Scultura 4000 Road Bike

+353(0)719616660

call for sales & advice

free delivery

spend €50 and get free delivery

Free click & collect

buy online, collect in-store

Based around the latest, super smooth 12-speed 105 groupset from Shimano and featuring our award-winning SCULTURA CF3 full carbon frame, the SCULTURA 4000 is far from an entry bike to our latest SCULTURA frame design family. Similarly to its bigger brothers, it combines a long list of air slicing features and race-proven geometry, adapted from our REACTO family, with low weight and class-leading riding comfort creating an almost unbeatable package. The fifth generation of our lightweight racer marries outstanding handling with improved comfort and an even more aerodynamic chassis. Thanks to incorporating selected aero details from our test and award-winning REACTO aero bike, the SCULTURA is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact it takes these factors to the next level, so far that Cycling Weekly gave it the highly sought after ‘Best Value Race Bike of the Year 2024’ award. The SCULTURA demonstrates outstanding compliance, providing the rider with class-leading riding comfort that will help to keep the body fresh for the final sprint or ascent. Available in CF5 and CF3 carbon frame versions, both sharing their geometry with the World Tour proven REACTO, our classic road bike combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree.

The Merida Scultura 4000 Road Bike Features:

  • Lightweight CF3 carbon frame (approx. 997 g – in size M) with race proven (identical to REACTO) geometry
  • Shimano 105 12-speed groupset
  • MERIDA EXPERT SL II stem
  • MERIDA EXPERT SL handlebar
  • MERIDA EXPERT SL wheelset
  • MERIDA EXPERT CC carbon seat post and DISC COOLER technology

Merida Scultura 4000 Road Bike Specifications:

  • model year 2025
  • frame SCULTURA CF3 V
  • frame size XXS, XS, S, M, L, XL
  • fork SCULTURA CF3 disc
  • rim MERIDA EXPERT SL
  • hubs Shimano HB-TC500 / Shimano HB-TC500-HL
  • front tyre Continental Ultra Sport III
  • rear tyre Continental Ultra Sport III
  • Hubs MERIDA EXPERT SL
  • crank Shimano 105 R7100
  • bottom bracket Shimano SM-BB72-41B
  • Cassette Shimano 105 R7101
  • chain Shimano M6100-12
  • shifters Shimano 105 disc
  • front derailleur Shimano 105
  • rear derailleur Shimano 105
  • brake lever Shimano 105
  • brakes Shimano 105
  • rotors Shimano RT10
  • headset MERIDA TEAM SL
  • Stem MERIDA EXPERT SL 2PII
  • stem size 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL),
  • handlebar MERIDA EXPERT SLII
  • grip MERIDA ROAD Expert
  • seat post MERIDA EXPERT CC
  • seat clamp MERIDA EXPERT
  • saddle MERIDA EXPERT SL
  • approx. weight 8.8 kg


Geometry:

Frame Size S
Tire Sizes 28″
St Seat Tubes Mm 481
Tt Top Tubes Mm 545
Cs Chain Stays Mm 408
Hta Head Tube Angles Deg 72.5
Sta Seat Tube Angle Deg 74
Bd Bottom Bracket Drops Mm 66
Height Head Tube Lengths Mm 128
Fl Fork Lengths Mm 385
R Reachs Mm 390
S Stacks Mm 542
Wb Wheel Base Mm 989
Sh Stand Over Height Mm 765
