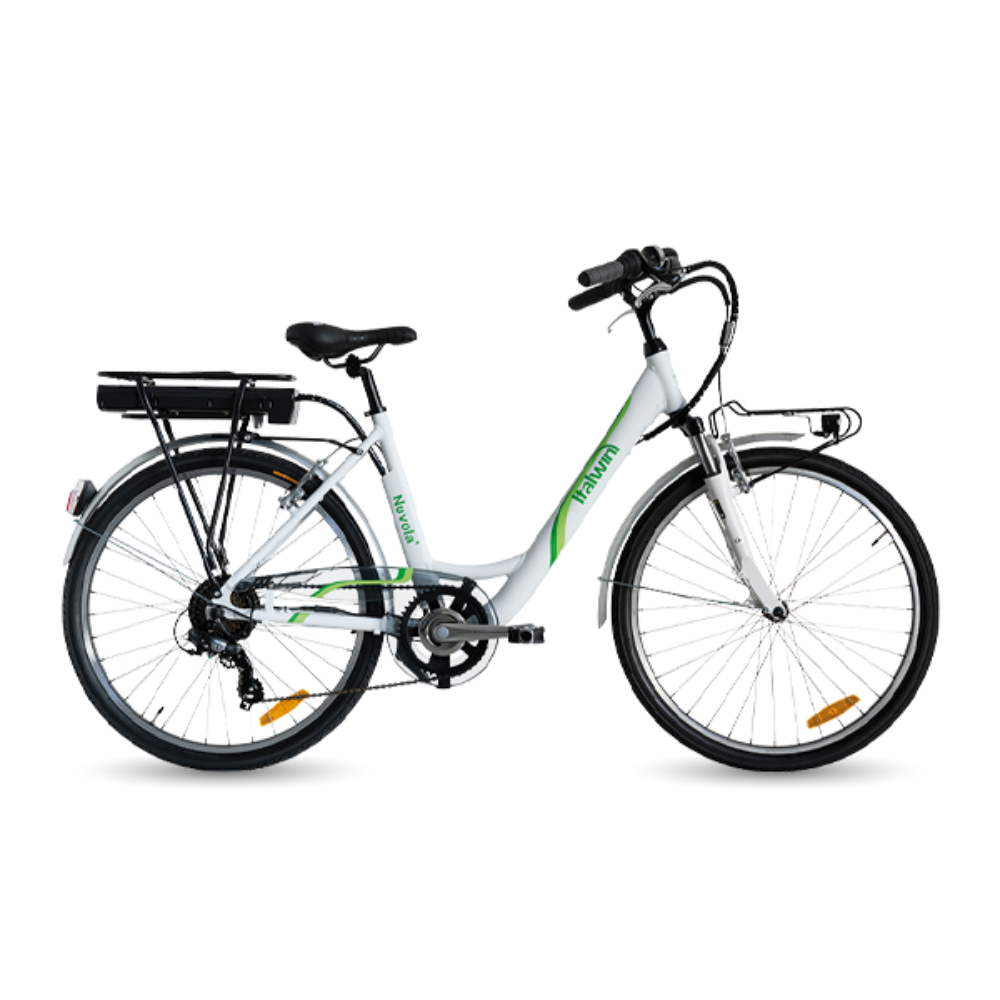

Italwin Nuvola Electric Bike Information:
- Category: Urban
- Frame: Unisex
- Wheels: 24″
- Battery type: Rack
- Batteries
36V, Lithium Ion, equipped with Samsung/BAK cells. Available in three power sizes: 8.7Ah, 11.6Ah, 14Ah.
- 45 mm suspended fork
A technical element that ensures smoothness, while keeping the set trajectory without jumping or slipping.
- Adjustable handlebar
Nuvola4 handlebar can be adjusted manually according to the rider’s height and the lenght of his arms.
- Extra-low down tube
Ease and riding comfort whenever you need to stop in your urban tours, without wasting time and balance.
- MOTOR
rear 250W brushless FIVE 40Nm
- FRAME
aluminium 44×56 cm
- DISPLAY
multifunction control unit; LEDs: 5 levels of motor assist and soft start device
Italwin Nuvola Electric Bike Technical Specifications:
- TRANSMISSION Chain KMC
- FRAME HXL Aluminium Nuvola4 24” 44×56 cm
- WHEELS 24″ x 1,75″
- MOTOR Rear 250W brushless FIVE 40Nm
- WEIGHT (EXCLUDING BATTERY) 20 kg
- BRAKES Front and rear V brake
- SPEED Max 25 km/h
- SADDLE Selle Monte Grappa
- FRONT FORK Suspended Zoom 45 mm
- GEAR 7-speed Shimano
- PEDALLING SENSOR Integrated speed sensor
- LIGHTS Front and rear LED Axa
- DISPLAY Multifunction control unit; LEDs: 5 levels of motor assist and soft start device
- MAXIMUM DRIVER WEIGHT 90 kg
See more of our bicycle range here :
Trailblazers Bicycles
Italwin Nuvola Electric Bike – Size guide
S
Frame height mm (a) 432
Top Tube Horizontal mm (b) 571,9
Head Tube Length mm (c) 210
Head Tube Angle (d) 70°
Seat Tube Angle (e) 73°
REACH mm 415,5
STACK mm 511,2
Rear End Length mm (f) 410
Wheelbase mm (g) 1037,5
